Opel Vauxhall F10- F13 - F15 - F17 Plate-type LSD

Plate-type LSD Opel / Vauxhall Corsa / Nova

Applications:

Compatible with the following gearboxes:

• F10 gearbox
• F13 gearbox
• F15 gearbox
• F17 gearbox

Opel / Vauxhall Models:

• Corsa
• Tigra
• Kadett
• Astra
• Nova

Manufacturing Process

Our Plate-Type LSDs (Limited Slip Differentials) are precision-crafted from FORGED Nickel-Chromoly steel and undergo specialized heat treatments, including Cryogenic Treatment. Additionally, they are subjected to advanced surface strengthening processes such as shot peening and WPC to enhance structural integrity, increase wear resistance, and extend service life.

These materials and treatments not only minimize friction and improve strength, but also contribute to significant weight reduction and better internal lubrication thanks to the incorporation of large oil windows and multiple holes.

As a result, our LSDs deliver exceptional durability, typically requiring no servicing during the first 2,000 km of special stages, along with improved and consistent traction and braking performance.

Technical Specifications

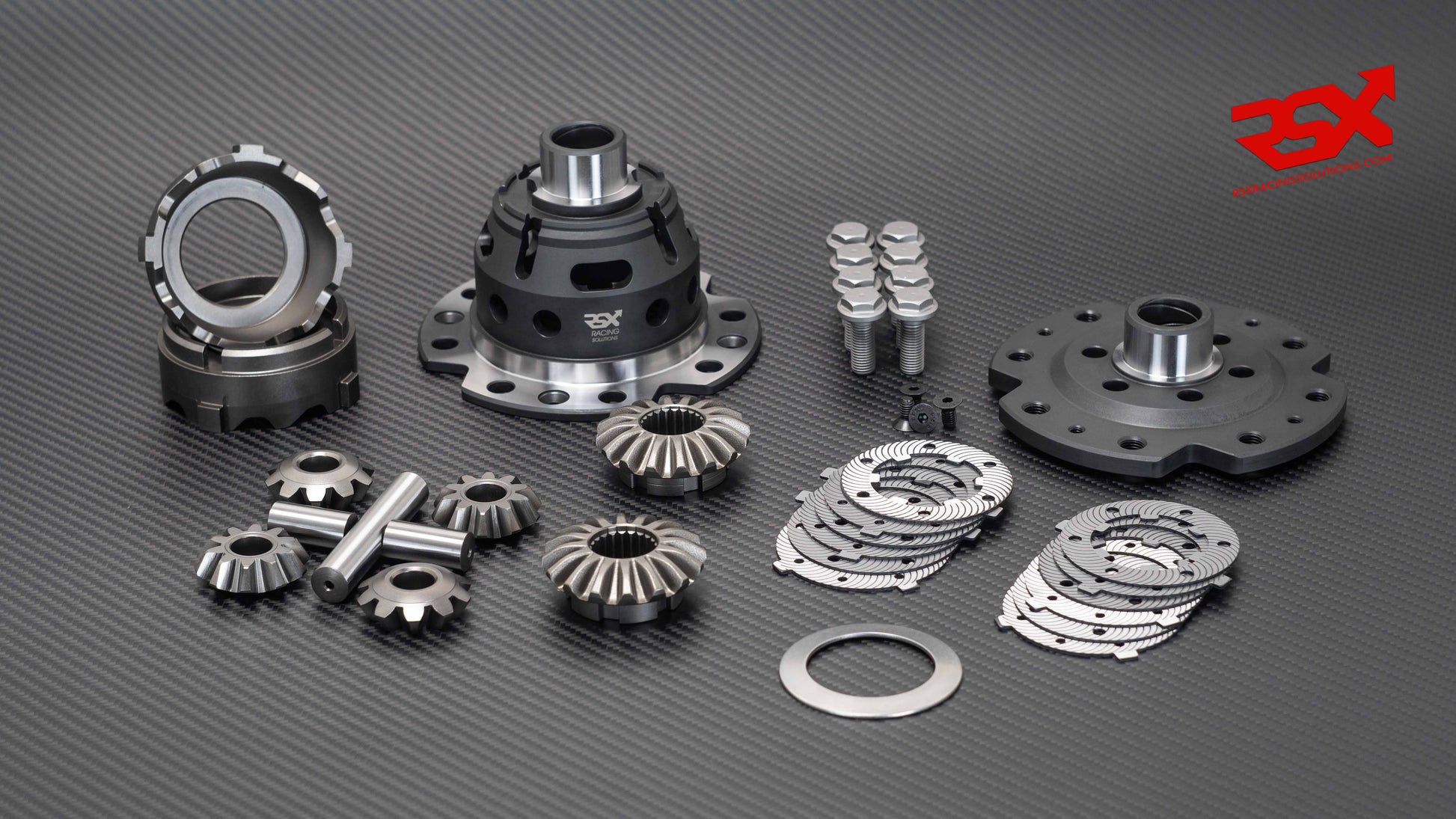

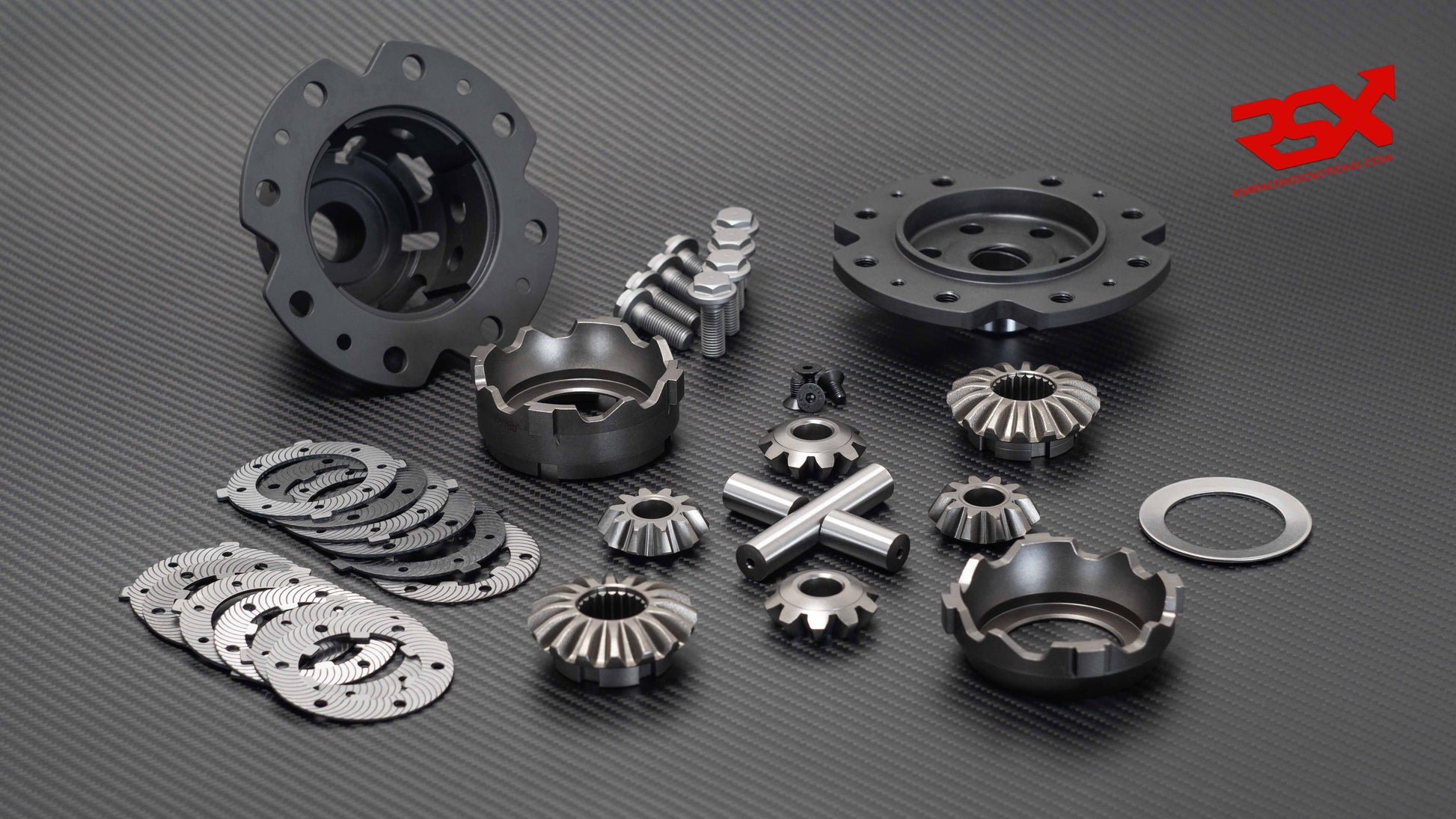

✔ Unique 12-Friction-Plate Design
This OPEL/VAUXHALL Plate-Type LSD is the only LSD on the market featuring a 12-friction-plate configuration for standard spline side gears, whereas most competitors use only 8 plates. As a result, we offer enhanced traction and braking, improved consistency, and stable preload values over extended periods, even in endurance racing.

✔ Lightest in Its Class
Weighing just 3.90 kg, it holds the distinction of being the lightest plated LSD available on the market for this application.

✔ Optimized Lubrication & Weight Reduction
The use of large oil windows and multiple holes improves internal lubrication, minimizes friction, and enhances fatigue strength.

✔ Exceptional Longevity & Performance Stability
Our LSDs offer extended durability, typically requiring no servicing during the first 2,000 km of special stages. They deliver consistent performance with stable preload values, making them ideal even for endurance racing.

✔ Dual Ramp Body for Versatile Use
As with all our plated LSDs, this version features a dual ramp body with:

• 35/65 ramp angles for tarmac use
• 45/60 ramp angles for gravel use
• Additional ramp angles available upon request

Extras Included (Free of Charge)

We include, at no additional cost:

• A set of high-tensile steel (12.9-grade) ring gear/crown wheel bolts for a secure and reliable installation.
• An extra, thicker Belleville/conical washer for those who wish to experiment with higher preload values, commonly used in gravel events.

Unmatched Reliability – 1-Year Motorsport Warranty

As a testament to our quality and reliability, we offer a 1-year motorsport warranty against material and manufacturing defects across our entire range of Plate-Type LSDs.

Price: 962,50€ including a set of special 12.9 crown wheel bolts, shipping and tax excluded.

Important Reminder:

We recommend using gear oils with shockproof additives or friction modifiers, commonly labeled as "LS" (Limited Slip) gear oils, specifically for plate-type LSDs.

The most common SAE grade is 75W-140 LS and only with LS specifications if a plate-type LSD is installed.

It is also advisable to add gear oil directly to the LSD during installation into the gearbox. Please note that although we apply anti-rust oil during assembly at our factory, it does not provide lubrication.
